Steel grades for quenching and tempering

They consist of construction steels used in all industrial sectors, especially in the mechanical industry, to produce highly stressed-fatigue components.

Our casting and rolling techniques allow for steel with excellent hardenability to be achieved together with high micro-purity, controlled austenitic grain and no surface decarburisation.

The analytical homogeneity associated with an inclusional state suitable for every specific application, guarantees repeatability of the results in the final processes of the clients.

Quenching & tempering

Steel grade

Steel grade Corresponding standard Average chemical composition
Werkstoff ORI Martin C Mn Cr Ni Mo B ppm S V
C C30E 1.1178 BC30L1 0,30 0,65 - - - - - -
C35E 1.1181 BC35L1 0,35 0,65 - - - - - -
C40E 1.1186 BC40L1 0,40 0,65 - - - - - -
C45E 1.1191 BC45L1 0,45 0,65 - - - - - -
C50E 1.1206 BC50L1 0,50 0,75 - - - - - -
C55E 1.1203 BC55L1 0,55 0,75 - - - - - -
C60E 1.1221 BC60L1 0,60 0,75 - - - - - -
CF53 C55L1E 0,54 0,55 - - - - - -
Mn 28/38Mn6 B36M61 0,29 1,50 - - - - - -
Mn Cr Ni 28MnCrNi5-2 + B TK28 W28RB1 0,30 1,30 0,50 0,50 - 30 - -
Cr 34Cr4 1.7033 S34C41 0,34 0,75 1,00 - - - - -
37Cr4 1.7034 S37C44 0,37 0,75 1,00 - - - - -
37CrS4 S36C41 0,37 0,75 1,00 - - - 0,03 -
41Cr4 1.7035 S41C41 0,41 0,75 1,00 - - - - -
41CrS4 S41C41 0,41 0,75 1,00 - - - 0,03 -
46CrB2 1.7075 S45B13 0,45 0,75 0,45 - - - - -
Cr Mn 36MnCr5 B36U51 0,36 0.95 1,15 - - - - -
CrMnB 27MnCrB5-2 1.7182 S27B51 0,27 1,25 0,45 - - 20 - -
33MnCrB5-2 1.7185 S31B51 0,33 1,35 0,45 - - 20 - -
Cr Mo 25CrMo4 1.7218 C25L41 0,25 0,70 1,00 - 0,20 - - -
34CrMo4 1.7220 B35L41 0,35 0,80 1,00 - 0,20 - - -
42CrMo4 1.7225 B42L41 0,42 0,80 1,00 - 0,20 - - -
L7 S42L47 0,42 0,80 1,00 0,20 0,20 - - -
50CrMo4 1.7228 S50L41 0,50 0,65 1,00 - 0,20 - - -
Cr Mo V 50CrMoV4 0,50 0,65 1,00 - 0,20 - - 0,15
31CrMoV9 1.8519 B31K92 0,30 0,55 2,50 - 0,20 - - 0,15
40CrMoV4-6 1.7711 B40K41 0,40 0,60 1,00 - 0,60 - - 0,30
Ni Cr Mo 40NiCrMo2 B40H21 0,40 0,70 0,50 0,60 0,20 - - -
30CrNiMo8 1.6580 B30H82 0,30 0,65 2,00 2,00 0,40 - - -
39NiCrMo3 1.6510 B38H41 0,39 0,65 0,80 0,85 0,20 - - -
36CrNiMo4 1.6511 B38H4 0,40 0,60 0,90 1,00 0,20 - - -
34CrNiMo6 1.6582 B34H6 0,34 0,65 1,50 1,50 0,25 - - -
SAE 8740 40H21L 0,40 0,780 0,50 0,50 0,20 - - -
SAE 4340 0,40 0,70 0,80 1,80 0,25 - - -
45SiCrMo6 1.8062 0,45 0,70 0,60 - 0,25 - - -
31CrMo12 1.8515 0,31 0,60 3,00 - 0,40 - - -
36NiCrMo16 1.6773 0,35 0,60 1,80 3,85 0,35 - - -
Ni Cr Mo V 60NiCrMoV12-4 1.2743 0,57 0,60 1,15 2,80 0,35 - - 0,10
Download

Products



ORI Martin S.p.A.

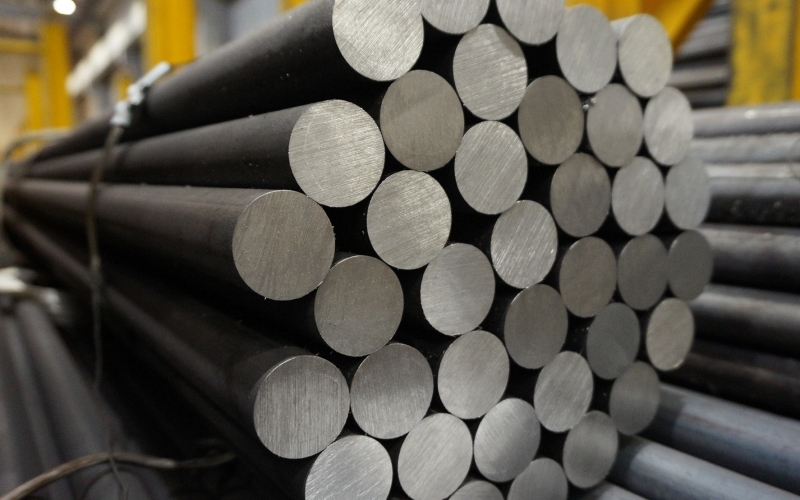

Hot rolled bars

Production takes place in a rolling mill at a controlled temperature using the very latest technology which guarantees a fine grain and homogeneous structure; the calibrator finishing block allows bars with restricted dimensional tolerances.

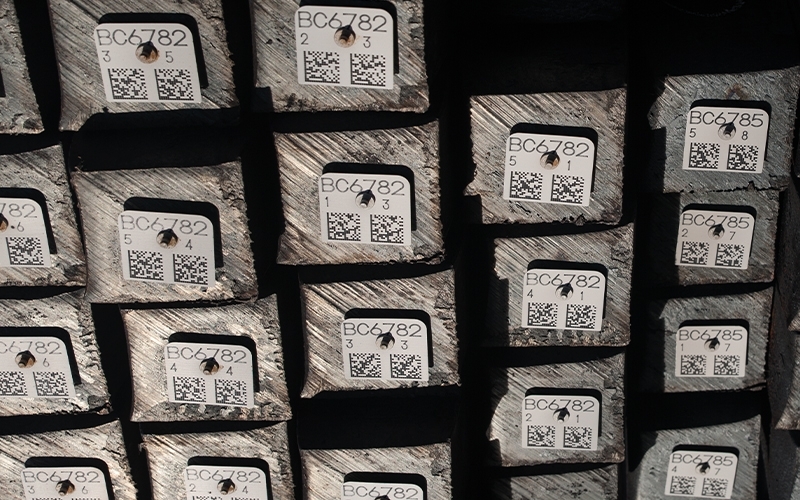

Continuous casting billets

ORI Martin spa sells continuous casting steel billets to rolling mills and hot forgers. The refining process with the degassing station and the casting through submerged nozzles guarantee the supply of billets of high-quality engineering steel.

Sales: ORI Martin S.p.A.

Alessandro Lombardi

Head of Sales

Italy

Phone +39 030 3999 214

Giovanni Caropreso

Sales Italy

Italy

Phone +39 030 3999 292

Roberta Crescini

Sales Italy

Italy

Phone +39 030 3999 224

Aldo Pezzoli

Sales Italy

Italy

Phone +39 030 3999 441

Federica Papa

Export sales

Italy

Phone +39 030 3999 404

Paola Salvetti

Export Sales

Italy

Phone +39 030 3999 440

Elisa Pini

Export sales and logistic

Italy

Phone +39 030 3999 227

Annalisa Fiolini

Export logistic

Italy

Phone +39 030 3999 221

Lino Fasani

Export logistic

Italy

Phone +39 030 3999 239

Michel Pham

Sales manager

France

Phone +33 3 873 610 90

Maria Picone

Sales assistance

France

Phone +33 387 361 090


ORI Martin France Sarl

Sales: ORI Martin France Sarl

Michel Pham

Sales manager

France

Phone +33 3 873 610 90

Maria Picone

Sales assistance

France

Phone +33 387 361 090


ORI Martin Deutschland GmbH



Sales: ORI Martin Deutschland GmbH

Mario Gerth

Leiter Vertrieb

Germany

Phone +49 (0)2151 15 103 00


Trafilati Martin S.p.A.
Peeled bars

Peeled bars from 17 to 80 mm.

Peeled bars from hot rolled bars can be produced with the following additional operations and controls:
- Heat treatment by annealing (soft and spheroidized annealing and so on)
- Heat treatment by quenching and tempering, normalising or stress reliving by induction
- Ends chamfering
- Surface defect control by Eddy Current
- Anti-mixing control
- Ultrasonic test


Peeled bars from hot rolled coil can be produced with the following additional operations and controls:
- Heat treatment by annealing (soft and spheroidized annealing and so on)
- Heat treatment by quenching and tempering, normalising or stress reliving by induction (after peeling)
- Ends chamfering
- Surface defect control by Eddy Current
- Anti-mixing control

Sales: Trafilati Martin S.p.A.

Massimo Modonesi

Sales manager Trafilati Martin

Italy

Phone +39 030 7058323

Daniele Calvagno

Key Account Manager

Italy

Phone +39 030 7058344


Novacciai Martin S.p.A.
Peeled & reeled bars

Peeled & reeled bars (+SH EN 10277)
Alloy Steel, Non-Alloy Steel and Stainless Steel
Ø 10,00 ÷ 200,00 ( ≥IT9 ) EN 10278
