Surface hardening and case hardening steels

The homogeneity of the chemical composition together with an adequate micro cleanness, enable ORI Martin special steels to guarantee constant results in the final processes of our customers.

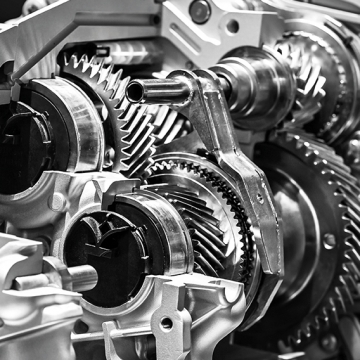

The surface hardening treatment achieves the wear resistance requested by hubs, shafts, gears and similar products.

Surface hardening and case hardening steels

Steel grade

Steel grade Corresponding standard Average chemical composition
Werkstoff ORI Martin C Mn Cr Ni Mo S V
C C10E 1.1121 CC10X1 0,10 0,50 - - - - -
C15E 1.1141 CC15L1 0,15 0,50 - - - - -
Mn Cr 16MnCr5 1.7131 C16U51 0,16 1,20 1,00 - - - -
16MnCrS5 1.7139 C16U52 0,16 1,20 1,00 - - 0,03 -
20MnCr5 1.7147 C20U51 0,20 1,25 1,10 - - - -
20MnCrS5 1.7149 C20U52 0,20 1,25 1,10 - - 0,03 -
27MnCr5 / C27U51 0,27 1,25 1,20 - - - -
12CRMo4 1.7201 S12L41 0,12 0,75 1,05 - 0,20 - -
Cr Mo 18CrMo4 1.7243 C18L41 0,18 0,70 1,00 - 0,20 - -
15-20CrMo5 1.7264 0,20 1,05 1,25 - 0,25 - -
13CrMo4-5 1.7335 0,13 0,70 0,93 - 0,50 - -
25MoCr4 1.7325 0,26 0,75 0,50 - 0,45 - -
25CrMo4 1.7218 C25L41L 0,25 0,75 1,05 - 0,22 - -
Ni Cr 19CrNi5 / C19R51L 0,20 0,90 1,00 1,00 - - -
10NiCr6 / C10R61L 0,10 0,70 1,05 1,28 - - -
12NiCr3 / C12R31 0,12 0,60 0,60 0,70 - - -
16NiCr11 / C16R11 0,15 0,45 0,75 2,75 - - -
16CrNi4 1.5714 C16R41 0,16 0,60 1,00 1,00 - - -
17CrNi6 1.5918 C16R61 0,16 0,60 1,50 1,50 - - -
15NiCr13 1.5752 0,17 0,55 0,75 3,25 - - -
14NiCr14 / 0,17 0,55 0,75 3,50 - - -
18MnNiCr4 / C17H22 0,18 1,23 0,45 0,45 0,06 - -
Ni Cr Mo 20NiCrMo2 1.6523 C20H21 0,20 0,70 0,50 0,60 0,20 - -
17NiCrMo6-4 1.6566 C18H51 0,18 0,70 1,00 1,30 0,20 - -
20MnNiCrMo3-3 1.6527 C20H23 0,20 0,85 0,50 0,80 0,20 - -
13CrNiMo7-6 / C13H71 0,14 0,50 1,40 1,60 0,25 - -
18CrNiMo7-6 1.6587 C18H71 0,18 0,70 1,65 1,55 0,30 - -
20NiCrMoS2-2 1.6526 C19H21 0,20 0,80 0,52 0,55 - - -
Cr Mo V 31CrMoV9 1.8519 B31K92 0,31 0,55 2,50 - 0,20 - 0,15
Mn Ni Cr Mo 23MnNiMoCr5-4 1.6758 C23H54 0,23 1,30 0,50 1,00 0,50 - -
23MnNiCrMo5-2 1.6541 C23H53 0,23 1,25 0,50 0,55 0,25 - -
15Mo3 1.5415 C15D31 0,16 0,65 - - 0,30 - -
20MnCrNi4-2 + B / S20HB1 0,22 1,10 0,60 0,50 0,10 - -
SAE 4720 / C20H22 0,20 0,60 0,45 1,05 0,20 - -
27MnSi5 1.0412 C27E51 0,27 1,50 - - - - -
Download

Products



ORI Martin S.p.A.
Wire rod

Rolling takes place at a controlled temperature using the very latest technology. This allows a smaller grain size to be obtained together with a more fine and even structure. Optimal characteristics for subsequent use in drawing and cold moulding in addition to a higher degree of globularisation after the annealing process.

Hot rolled bars

Production takes place in a rolling mill at a controlled temperature using the very latest technology which guarantees a fine grain and homogeneous structure; the calibrator finishing block allows bars with restricted dimensional tolerances.

Continuous casting billets

ORI Martin spa sells continuous casting steel billets to rolling mills and hot forgers. The refining process with the degassing station and the casting through submerged nozzles guarantee the supply of billets of high-quality engineering steel.

Sales: ORI Martin S.p.A.

Alessandro Lombardi

Head of sales

Italy

Phone +39 030 3999 214

Giovanni Caropreso

Sales Italy

Italy

Phone +39 030 3999 292

Roberta Crescini

Sales Italy

Italy

Phone +39 030 3999 224

Alberto Petroboni

Sales Italy

Italy

Phone +39 030 3999 272

Federica Papa

Export sales

Italy

Phone +39 030 3999 404

Elisa Pini

Export sales and logistic

Italy

Phone +39 030 3999 227

Annalisa Fiolini

Export logistic

Italy

Phone +39 030 3999 221

Lino Fasani

Export logistic

Italy

Phone +39 030 3999 239

Michel Pham

Sales manager

France

Phone +33 3 873 610 90

Maria Picone

Sales assistance

France

Phone +33 387 361 090


ORI Martin France Sarl

Sales: ORI Martin France Sarl

Michel Pham

Sales manager

France

Phone +33 3 873 610 90

Maria Picone

Sales assistance

France

Phone +33 387 361 090


ORI Martin Deutschland GmbH



Sales: ORI Martin Deutschland GmbH

Mario Gerth

Leiter Vertrieb

Germany

Phone +49 (0)2151 15 103 00


Trafilati Martin S.p.A.
Cold drawn bars

Cold drawn bars are cold finished products achieved by the cold deformation of the wire rod through a die that reduces the diameter and after various controls are cut into the length required. This process achieves the calibration of the wire into the diameter required. We can obtain wire in a wide range of diameters, the mechanical characteristics increase depending on the reduction carried out.

Cold drawn bars can be produced with the following additional operations and controls:
- Heat treatment by annealing (soft and spheroidized annealing and so on)
- Heat treatment by quenching and tempering, normalising or stress reliving by induction (after drawing)
- Ends chamfering
- Surface defect control by Eddy Current
- Anti-mixing control

Peeled bars

Peeled bars from 17 to 80 mm.

Peeled bars from hot rolled bars can be produced with the following additional operations and controls:
- Heat treatment by annealing (soft and spheroidized annealing and so on)
- Heat treatment by quenching and tempering, normalising or stress reliving by induction
- Ends chamfering
- Surface defect control by Eddy Current
- Anti-mixing control
- Ultrasonic test


Peeled bars from hot rolled coil can be produced with the following additional operations and controls:
- Heat treatment by annealing (soft and spheroidized annealing and so on)
- Heat treatment by quenching and tempering, normalising or stress reliving by induction (after peeling)
- Ends chamfering
- Surface defect control by Eddy Current
- Anti-mixing control

Sales: Trafilati Martin S.p.A.

Massimo Modonesi

Sales manager Trafilati Martin

Italy

Phone +39 030 7058323


Novacciai Martin S.p.A.
Peeled & reeled bars

Peeled & reeled bars (+SH EN 10277)
Alloy Steel, Non-Alloy Steel and Stainless Steel
Ø 10,00 ÷ 200,00 ( ≥IT9 ) EN 10278

Cold drawn bars

Cold drawn bars (+C EN 10277)
Alloy Steel, Non-Alloy Steel and Stainless Steel
Ø 8,00 ÷ 74,00 ( ≥IT9 ) EN 10278

Ground Bars

Ground bars
Alloy Steel, Non-Alloy Steel and Stainless Steel
Ø 6,00 ÷ 200,00 (IT9 ÷ IT6) EN 10278

Sales: Novacciai Martin S.p.A.

Simone Locati

Sales

Italy

Phone +39 0321 530605
